Product Description:
1. Unique ”Safety Cage” system, can firmly fixed the work-piece with the good skid-resistance and safety.
2. Self – centering, anti – eccentric load, ensures that the screw rod is always in the center of force and extends the service life.
3. Through the T type handle and the safety cage to control the wheel quickly, it’s more convenient to operate.
4. Slim tapered jaws make it easier to work in narrow space.
5. NPT 3/8” quick coupling, can work with kinds of 700bar/10000psi power pack together.
6. Slim tapered jaws make it easier to work in narrow space.
Product Description:
1. Unique ”Safety Cage” system, can firmly fixed the work-piece with the good skid-resistance and safety.
2. Self – centering, anti – eccentric load, ensures that the screw rod is always in the center of force and extends the service life.
3. Through the T type handle and the safety cage to control the wheel quickly, it’s more convenient to operate.
4. Slim tapered jaws make it easier to work in narrow space.
5. NPT 3/8” quick coupling, can work with kinds of 700bar/10000psi power pack together.
6. Slim tapered jaws make it easier to work in narrow space.
| Model | Number of Jaws | Capacity (T) | Spread(min.-max.) (mm) | Max.Reach (mm) | Screw Rod Diameter (mm) | Weight (kg) |
| KET-EP-104 | 3 | 5 | 12-127 | 101 | 14 | 1.8 |
| KET-EP-106 | 3 | 10 | 12-178 | 152 | 16 | 3.6 |
| KET-EP-108 | 3 | 17 | 19-304 | 203 | 20 | 6.4 |
| KET-EP-110 | 3 | 20 | 25-381 | 245 | 20 | 7.3 |
| KET-EP-113 | 3 | 30 | 63-457 | 304 | 29 | 20 |
| KET-EP-116 | 3 | 40 | 76-635 | 355 | 31 | 30.8 |
| KET-EP-204 | 2 | 2 | 12-127 | 101 | 14 | 1.4 |
| KET-EP-206 | 2 | 6 | 12-178 | 152 | 16 | 3.2 |
| KET-EP-208 | 2 | 12 | 19-304 | 203 | 20 | 5.4 |
| KET-EP-210 | 2 | 14 | 25-381 | 245 | 20 | 5.9 |
| KET-EP-213 | 2 | 25 | 63-457 | 304 | 29 | 17.2 |
| KET-EP-216 | 2 | 35 | 76-635 | 355 | 31 | 25.8 |
 |
 |
|

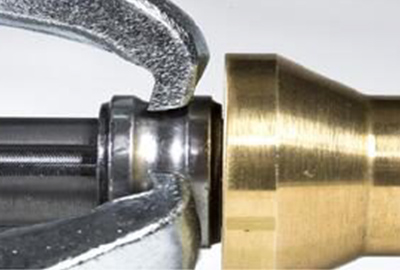

Bearing disassembly in the maintenance of mining machinery
|
Workpiece disassembly
|
