Short Description:

The system consists of upper and lower ring beams, hydraulic cylinders, and a PLC control system. Significant improvements under the pre-ballast lifting working conditions.The max lifting capacity of a single pile of the system can reach 10,000 tons, and the maximum operating water depth is 120 meters. It is suitable for all types of truss-leg self-elevating platforms.


Where to Buy

For inquiries about our products or pricelist, please leave your email to us and we will be in touch within 24 hours.

Where to Contact

For inquiries about our products or pricelist, please leave your email to us and we will be in touch within 24 hours.

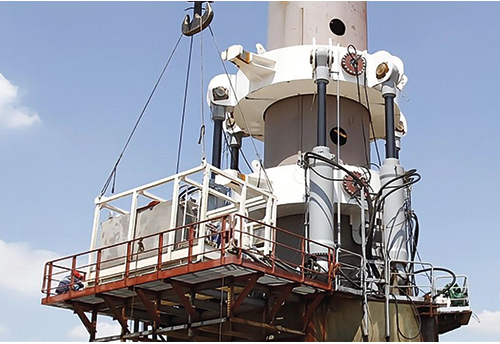

The system consists of upper and lower ring beams, hydraulic cylinders, and a PLC control system. Significant improvements under the pre-ballast lifting working conditions.The max lifting capacity of a single pile of the system can reach 10,000 tons, and the maximum operating water depth is 120 meters. It is suitable for all types of truss-leg self-elevating platforms.

Smooth and accurate lifting and lowering, adapt to frequent starts. It has obvious advantages in terms of safety and efficiency.The system uses hydraulic power loading and is equipped with a double-step automatic upper and lower mechanism. By utilizing the synchronous actions of the upper and lower cylinders, it can rapidly improve the lifting and lowering efficiency of the platform. The average lifting and lowering speed of the platform can reach 60mm/min, which can fully meet the platform requirements. The system can adapt to frequent starts and brakes, providing powerful technical support for the frequent lifting and lowering operations of the platform.

Specs& Dims

Model No.

Lifting Capacity

(t)

Holding Capacity

(t)

Drive

KET-HT-600

600

800

Hydraulic

KET-HT-1000

1000

1500

KET-HT-1500

1500

3000

KET-HT-2400

2400

3600

KET-HT-3000

3000

6000

KET-HT-3600

3600

6000

Applications

Synchronous Lifting & Maintenance of Large Electric Shovels<br /><br /><br /><br /><br /><br /><br /><br /><br /><br /><br /><br /><br /><br /><br /><br /><br /><br /><br /><br />
Synchronous Lifting & Maintenance of Large Electric Shovels<br /><br /><br /><br /><br /><br /><br /><br /><br /><br /><br /><br /><br /><br /><br /><br /><br /><br /><br /><br />
Synchronous Lifting & Attitude Adjustment of Shield Tunneling Platform

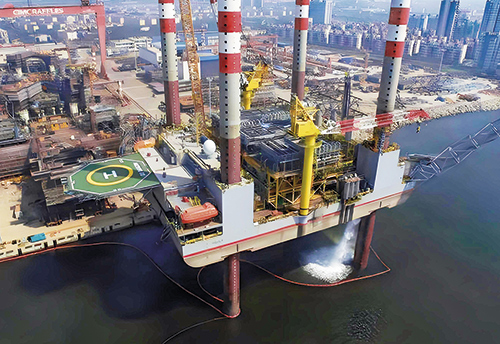

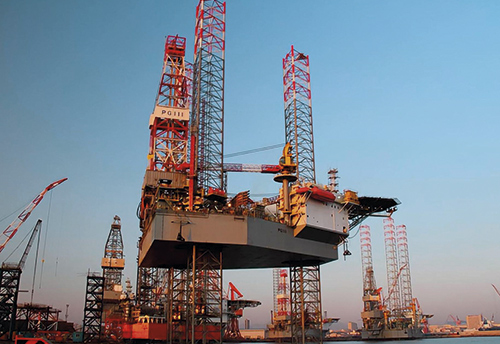

Offshore Drilling Platform Synchronous Lifting
