Ideal for industries requiring precise handling and positioning of large-scale equipment, such as construction, manufacturing, and heavy machinery assembly.
The Heavy-Load Synchronous 3D Sliding Positioning System is an innovative hydraulic solution engineered for synchronized heavy-load sliding and precise three-dimensional positioning of large components or equipment. Equipped with a robust sliding module featuring lateral adjustment, it delivers a lifting capacity of up to 600 tons per unit and supports synchronized control of up to 100 devices. With a one-touch “auto-zero” function, the system adapts to complex base surfaces, ensuring safe and reliable operation. Utilizing a communication bus network, it connects a central control console to integrated hydraulic, mechanical, and electrical units for rapid setup and real-time adjustments. Offering a synchronization accuracy of 5mm, positioning precision of 1mm across X, Y, and Z axes, and a vertical adjustment range of 150mm, this system excels in heavy-duty applications within a 300m range, with pressure, displacement, and fault data monitored via the central console.
| Product Name | Quantity | Functions and Features |
| Synchronized Control Console | 1 | Collects and processes control command issuance and information; the main hardware consists of an industrial touchscreen PC and PLC modules. |

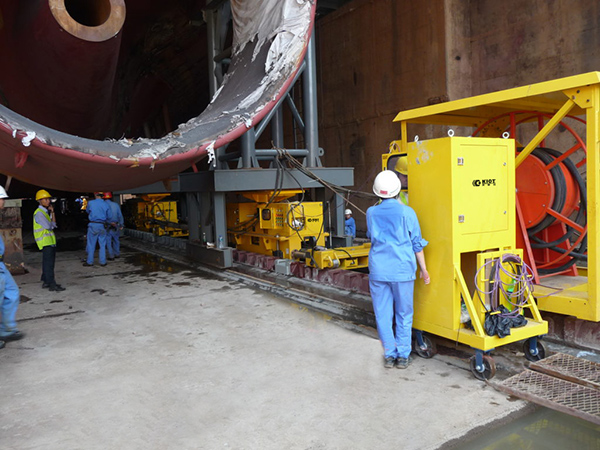

| Heavy-Duty Skidding Trolley | 8 | Comprised of a heavy-duty chassis, hydraulic jacks, hydraulic control valves, and PLC control modules; supports heavy load components and performs three-dimensional six-axis movements such as lifting and translating. |
| Skidding Track | 24 | Provides a skidding bearing surface and reduces friction. Each section has a fixed length of 6 meters; enables rapid modular assembly. Installed in two parallel rows. |
| Power Supply Trolley | 2 | Travels alongside components and equipment to supply electrical power; positioned on both sides of the skidding tracks. |
| Communications Bus | 8 | Connects the synchronous control console and heavy-duty equipment; uses a single bus to daisy-chain multiple heavy-duty devices with quick-plug connections. |
