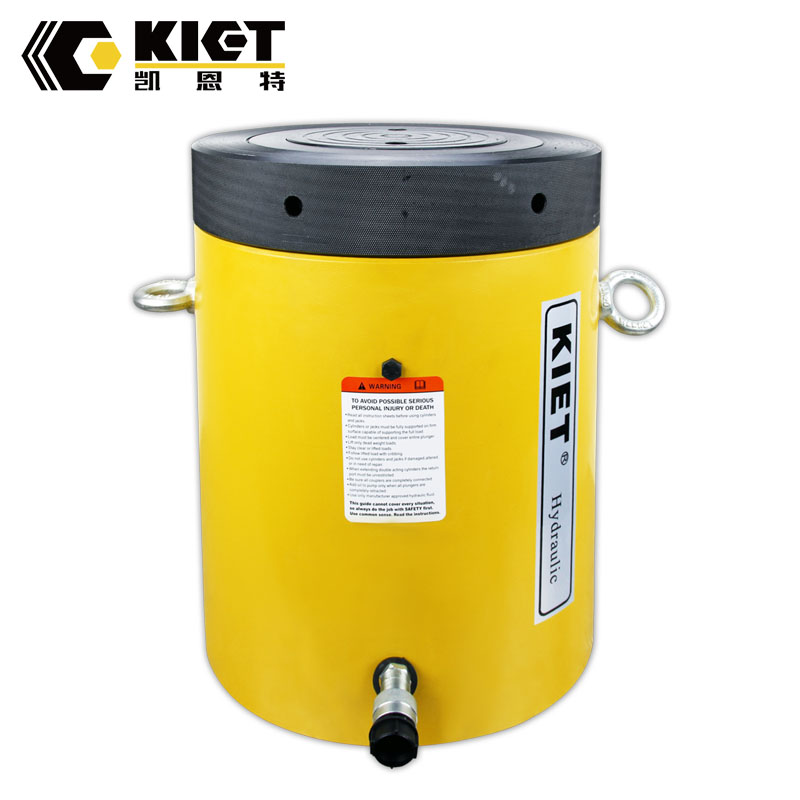

2021 Good Quality Hydraulic Cylinder For Pile Load Testing - Single Acting High Tonnage Hydraulic Cylinder (CLSG Series) – Canete Detail:

Product Features

Single acting, load return

Integral stop ring provides piston blow-out protection.

Special bearing design withstands side-loads up to 10% of the rated load.

Built-in scraper seal reduces contamination, extending cylinder life.

Standard rigid deep groove saddle, can choose a 5 degree tilt saddle to adapt to component unevenly situation.

Single acting design apply to working conditions of need connected common force.

Single acting design does not apply to horizontal working conditions.

3/8 “- 18NPT coupler and dust cap included on all models.



Field Applications

Synchronous lifting fo hull in shipyard

Supporting use of all kinds of press machines

Propeller adjustment in shipbuilding plant

Propeller adjustment in shipbuilding plant

Synchronous locking for cable of cable-stayed bridge in bridge girder construction

Synchronous locking for cable of cable-stayed bridge in bridge girder construction

Synchronous lifting and moving of building

Synchronous lifting and moving of building

2               1

 Technical Parameters

Model Capacity Working Pressure Closed HeightA Stroke Effective Area Oil Capacity Outside DiameterD Plunger DiameterF Saddle DiameterJ Weight
(T) (T) (mm) (mm) (cm2) (cm3) (mm) (mm) (mm) (kg)
KET-CLSG-502 50 70 162 50 76.1 380 130 70 50 15
KET-CLSG-504 212 100 76.1 761 130 70 50 19
KET-CLSG-506 262 150 76.1 1141 130 70 50 23
KET-CLSG-508 312 200 76.1 1522 130 70 50 27
KET-CLSG-5010 362 250 76.1 1902 130 70 50 31
KET-CLSG-5012 412 300 76.1 2283 130 70 50 35
KET-CLSG-1002 100 70 182 50 133 665 165 95 75 28
KET-CLSG-1004 232 100 133 1331 165 95 75 34
KET-CLSG-1006 282 150 133 1996 165 95 75 40
KET-CLSG-1008 332 200 133 2662 165 95 75 46
KET-CLSG-10010 382 250 133 3327 165 95 75 53
KET-CLSG-10012 432 300 133 3993 165 95 75 59
KET-CLSG-1502 150 70 196 50 198 990 205 114 94 39
KET-CLSG-1504 246 100 198 1979 205 114 94 52
KET-CLSG-1506 296 150 198 2969 205 114 94 67
KET-CLSG-1508 346 200 198 3959 205 114 94 76
KET-CLSG-15010 396 250 198 4948 205 114 94 92
KET-CLSG-15012 446 300 198 5938 205 114 94 105
KET-CLSG-2002 200 70 216 50 266 1332 235 133 113 55
KET-CLSG-2006 316 150 266 3995 235 133 113 94
KET-CLSG-20012 466 300 266 7990 235 133 113 106
KET-CLSG-2502 250 70 235 50 366 1830 275 165 145 89
KET-CLSG-2506 335 150 366 5491 275 165 145 136
KET-CLSG-25012 485 300 366 10983 275 165 145 210
KET-CLSG-3002 300 70 312 50 457 2287 310 195 177 184
KET-CLSG-3006 412 150 457 6860 310 195 177 223
KET-CLSG-30012 562 300 457 13719 310 195 177 303
KET-CLSG-4002 400 70 375 50 613 3066 350 215 196 270
KET-CLSG-4006 475 150 613 9197 350 215 196 303
KET-CLSG-40012 625 300 613 18393 350 215 196 421
KET-CLSG-5002 500 70 419 50 730 3648 400 248 228 401
KET-CLSG-5006 519 150 730 10945 400 248 282 480
KET-CLSG-50012 669 300 730 21890 400 248 228 599
KET-CLSG-6002 600 70 429 50 856 4282 430 270 247 474
KET-CLSG-6006 529 150 856 12845 430 270 247 568
KET-CLSG-60012 679 300 856 25690 430 270 247 707
KET-CLSG-8002 800 70 474 50 1217 6087 510 317 297 741
KET-CLSG-8006 574 150 1217 18260 510 317 297 880
KET-CLSG-80012 742 300 1217 36521 510 317 297 1058
KET-CLSG-10002 1000 70 564 50 1464 7322 560 345 323 1055
KET-CLSG-10006 664 150 1464 21966 560 345 323 1210
KET-CLSG-100012 814 300 1464 43932 560 345 323 1442

<!–
