Semi-automatic 3D Adjustment Hydraulic Equipment
Where to Buy
For inquiries about our products or pricelist, please leave your email to us and we will be in touch within 24 hours.
Product Detail

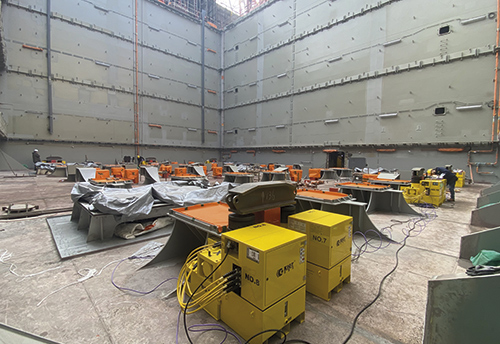

Engineered for unparalleled precision in large-scale structural assembly, our Semi-automatic 3D Hydraulic Adjustment System is the definitive solution for projects where accuracy is paramount. Proven in critical applications such as the precise positioning of LNG B-Tanks in shipbuilding, this equipment empowers operators to maneuver and align massive components with absolute confidence.
The system's core strength lies in its meticulous three-dimensional (X, Y, Z) control. Each hydraulic cylinder can be operated independently, allowing for pinpoint adjustments in height, longitude, and horizon. For enhanced safety and long-term stability during extended operations, a robust mechanical nut-locking feature secures the main cylinder, guaranteeing load-holding integrity.
Built to withstand the most demanding environments, the system boasts an IP56 rating and exceptional resistance to salt spray, ensuring reliable performance in coastal areas, shipyards, and extreme temperatures ranging from -20°C to +50°C.

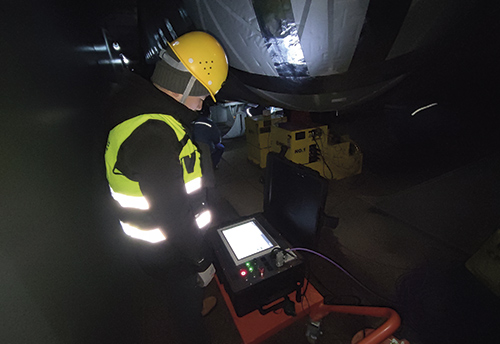

Its innovative split-type design, consisting of a compact hydraulic power unit and 3D cylinder sets, offers unmatched operational flexibility. The components can be separated for easy transportation by just 2-3 personnel and positioned independently within confined spaces, significantly streamlining project logistics. This isn't just a tool; it's a comprehensive positioning solution designed to enhance efficiency, ensure safety, and deliver flawless results on your most challenging projects.
Applications
Features
- Small size, disassemble
- Split type, easy for storage and transportation
- Working Temperature: -20℃ ~ 50℃
- Max Monthly Humidity: ≤ 95%(+25℃ )
- Resistance to salt spray
- Power: AC 380v±10 ％ ,1.1kW/PC,50Hz±1Hz
- L-HM32 hydraulic oil
Product Dimensions
|
Model No. |
Capacity |
Cylinder Stroke(mm) |
Collapsed Height |
||
|
|
(t) |
Z |
X |
Y |
(mm) |
|
KET-TZJ-M100 |
100 |
200 |
±40 |
±40 |
1000 |
|
KET-TZJ-M200 |
180 |
200 |
±40 |
±40 |
1000 |
