Self-propelled Hydraulic Module Transporter
Where to Buy
For inquiries about our products or pricelist, please leave your email to us and we will be in touch within 24 hours.
Transportation Method
The traveling hydraulic modular transport vehicle has ultra-large load, modularization, intelligence and multi-mode steering. The transporter is composed of axis modules and power modules, and the transporter adopts bus microcomputer control, hydraulic drive walking and hydraulic independent steering. Its maximum assembly size can reach 1,000 axes, and the maximum load capacity can reach 25,000 tons. Each unit module is equipped with 1 ~ 2 axes drive axles, and adopts a dynamic dispersed arrangement; A set of steering and walking drive control devices are arranged on every two axes to achieve distributed control.
Under the unified coordination of the main control unit, the parallel system of up to 1,000 axes can realize synchronous walking, multi-mode steering and platform lifting. Scope of application: metallurgy, electric power, shipbuilding, petrochemical, marine engineering, construction, large-scale transportation, railway construction, equipment manufacturing and other fields, can meet almost all kinds of heavy-duty transportation applications.

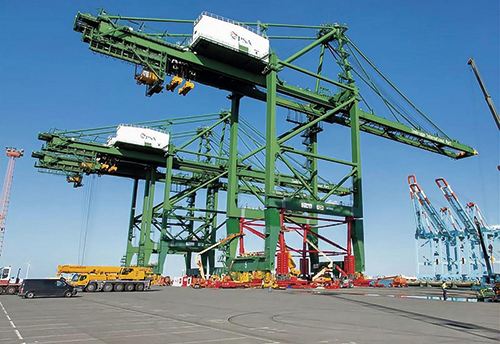

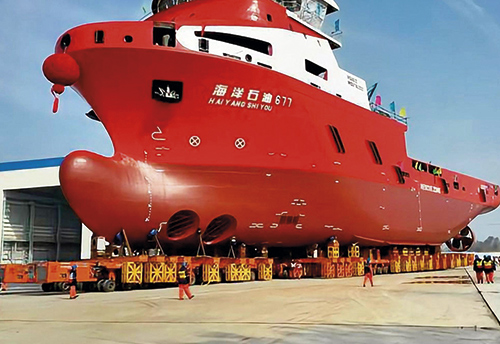

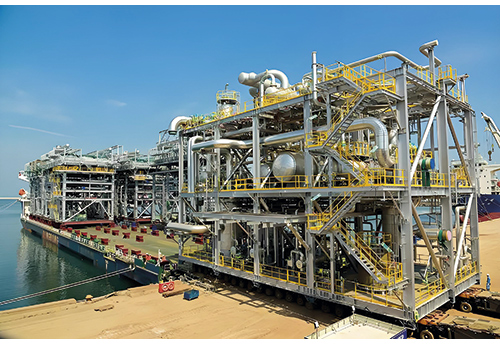

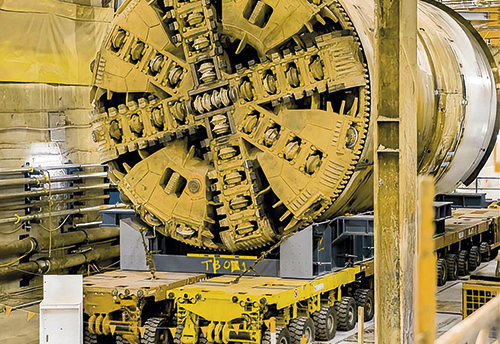

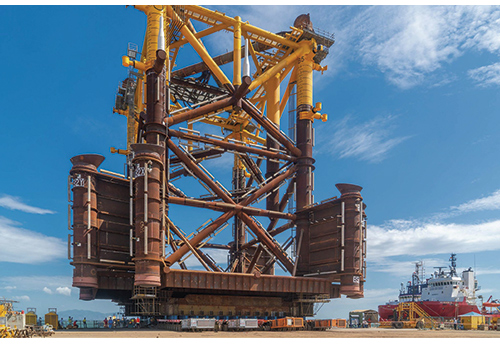

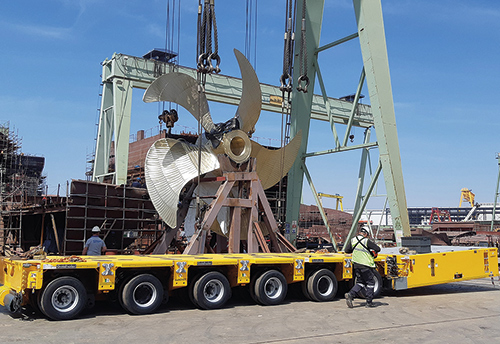

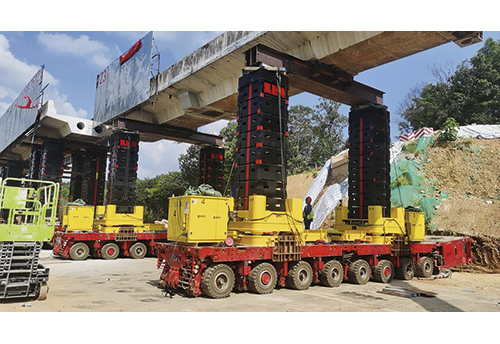

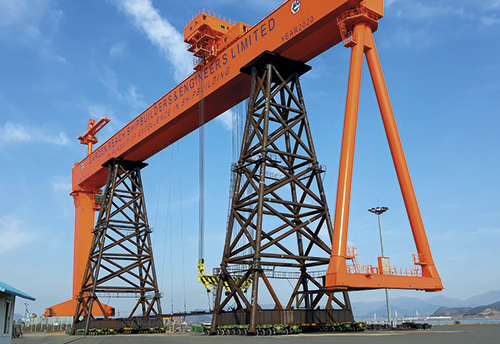

Applications
Product Dimensions
|
Model No. |
Axial numbers |
Rated load (t) |
Empty weight (t) |
Wheels number |
Minimum turning radius (m) |
Dimension (m) |
|||
|
|
|
|
|
|
Inner |
Outer |
Length |
Width |
Height |
|
KET-SPMT-60 |
2 |
60 |
10 |
16 |
3.14 |
8.4 |
3.2 |
3.6 |
1.25 |
|
KET-SPMT-90 |
3 |
90 |
15 |
24 |
2.7 |
8.4 |
4.8 |
3.6 |
1.25 |
|
KET-SPMT-120 |
4 |
120 |
19.4 |
32 |
3.35 |
9.43 |
6.4 |
3.6 |
1.25 |
|
KET-SPMT-150 |
5 |
150 |
25 |
40 |
2.0 |
7.4 |
8.0 |
3.6 |
1.25 |
|
KET-SPMT-180 |
6 |
180 |
30 |
48 |
2.7 |
8.4 |
9.6 |
3.6 |
1.25 |
|
KET-SPMT-210 |
7 |
210 |
34.6 |
56 |
3.35 |
9.43 |
11.2 |
3.6 |
1.25 |
|
KET-SPMT-240 |
8 |
240 |
38.6 |
64 |
3.35 |
9.43 |
12.8 |
3.6 |
1.25 |
Technical parameters of the power head
|
Model No. |
Dimension L(mm)xW(mm) xH(mm) |
Engine
power (kw/rpm) |
Exhaust emission standards |
Oil tank volume (L) |
Hydraulic oil tank volume (L) |
Voltage
(V) |
The max driven axles |
Weight
(t) |
|
KET-PPU-A |
4200x2980x890 |
360/2100 |
National standard Ⅲ |
400 |
800 |
24 |
40 |
7 |
|
KET-PPU-B |
2800x2980x857 |
132/2500 |
National standard Ⅲ |
280 |
600 |
24 |
20 |
5 |
