Marine Segments Vertical Adjustment Equipment
Where to Buy
For inquiries about our products or pricelist, please leave your email to us and we will be in touch within 24 hours.
Product Detail

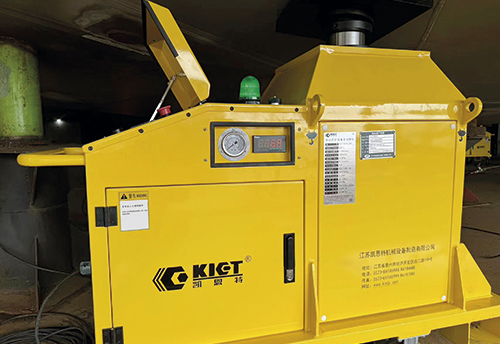

The Marine Segments Vertical Adjustment Equipment is a high-performance hydraulic system designed specifically for precise positioning and lifting of small and medium marine block segments. With a loading capacity ranging from 400 to 800 tons, this system ensures stable and efficient operation during both no-load and heavy-load conditions, meeting the demanding requirements of shipbuilding yards worldwide.
Engineered with advanced semi-automatic integration and wireless control technology, the equipment allows operators to easily manage vertical adjustments within a 0–300 mm range, offering flexible and accurate position control. Its compact structure and lightweight design make it highly maneuverable, with the ability to rotate and move effortlessly even in confined working environments.
Constructed with high-quality hydraulic components, the system delivers excellent durability, high efficiency, and minimal maintenance requirements. The intelligent wireless control system enhances operation safety and convenience, significantly improving on-site workflow efficiency. The unit’s modular connection options (2PCS/4PCS) enable easy configuration and scalability to meet various ship segment installation needs.
With an operational height range of 1250–1550 mm, this equipment is ideal for precision alignment tasks in marine construction and segmented hull assembly. Its unique mechanical design ensures a reduced turning radius and stable movement, supporting multiple transportation methods for on-site flexibility.

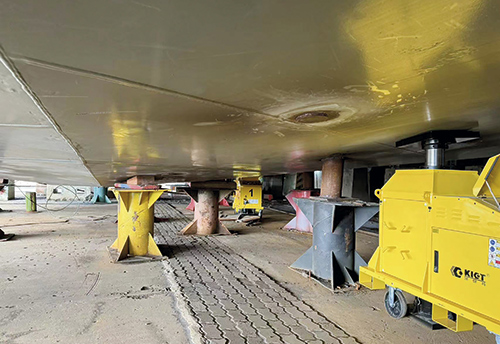

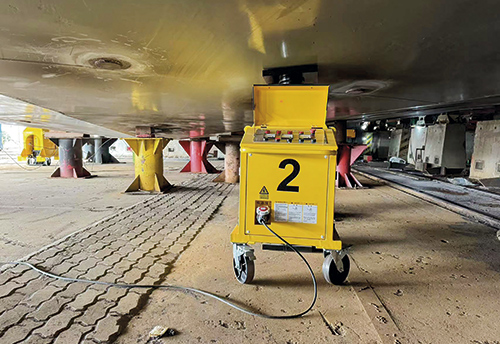

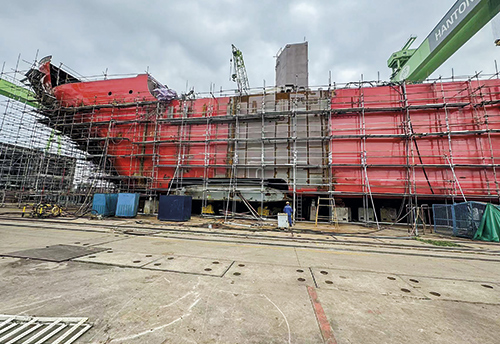

Applications
Product Dimensions
|
Model No. |
Capacity
(t) |
Working Pressure (MPa) |
Vertical Adjustment (mm) |
Mini Height
(mm) |
Max Height
(mm) |
Tiltable Angle
(º) |
|
KET-HCA-100 |
400(100×4) |
70 |
0~300 |
1250 |
1550 |
5 |
|
KET-HCA-200 |
800(200×4) |
70 |
0~300 |
1250 |
1550 |
5 |
